Industrial design/2026

L01

Role
Industrial design
Material
Al 6061-T6 / 6063-T5
Envelope
622.5 × 135.1 × 412.4 mm
Status
EVT-00 concept, Rev B

Architectural task light

A task light reduced to a single line: a 415 mm aluminum head, one leaning support, and a friction hinge calculated to hold any angle through 120° of roll.

L01 on a pale surface: a slim white base, a support leaning back a few degrees, and a long square-section light head extending to the right from a cylindrical hinge.

One line.
One joint.

A task light is a simple request: put a clean, even line of light exactly where the work is, then get out of the way. L01 answers it with the least object it can: a 415 mm aluminum head, a single slender support, and one joint.

Everything that is not form has been moved out of sight. The weight lives in the base, the friction mechanism lives in the hinge, and the driver and controls live under the plate. What stays on the desk is a line, a post and a plate.


01/System

Two extrusions.
One axis.

The luminaire is two aluminum extrusions meeting at a single joint. A 380 mm support leans 5° back from the base, and a 415 mm head runs across the desk to an overall length of 622.5 mm. The head rolls about its own centre line, so the hinge axis and the line of light are one and the same.

  • 622.5 mmOverall length
  • 412.4 mmOverall height
  • 5°Support lean
  • ±60°Roll range, hard stops

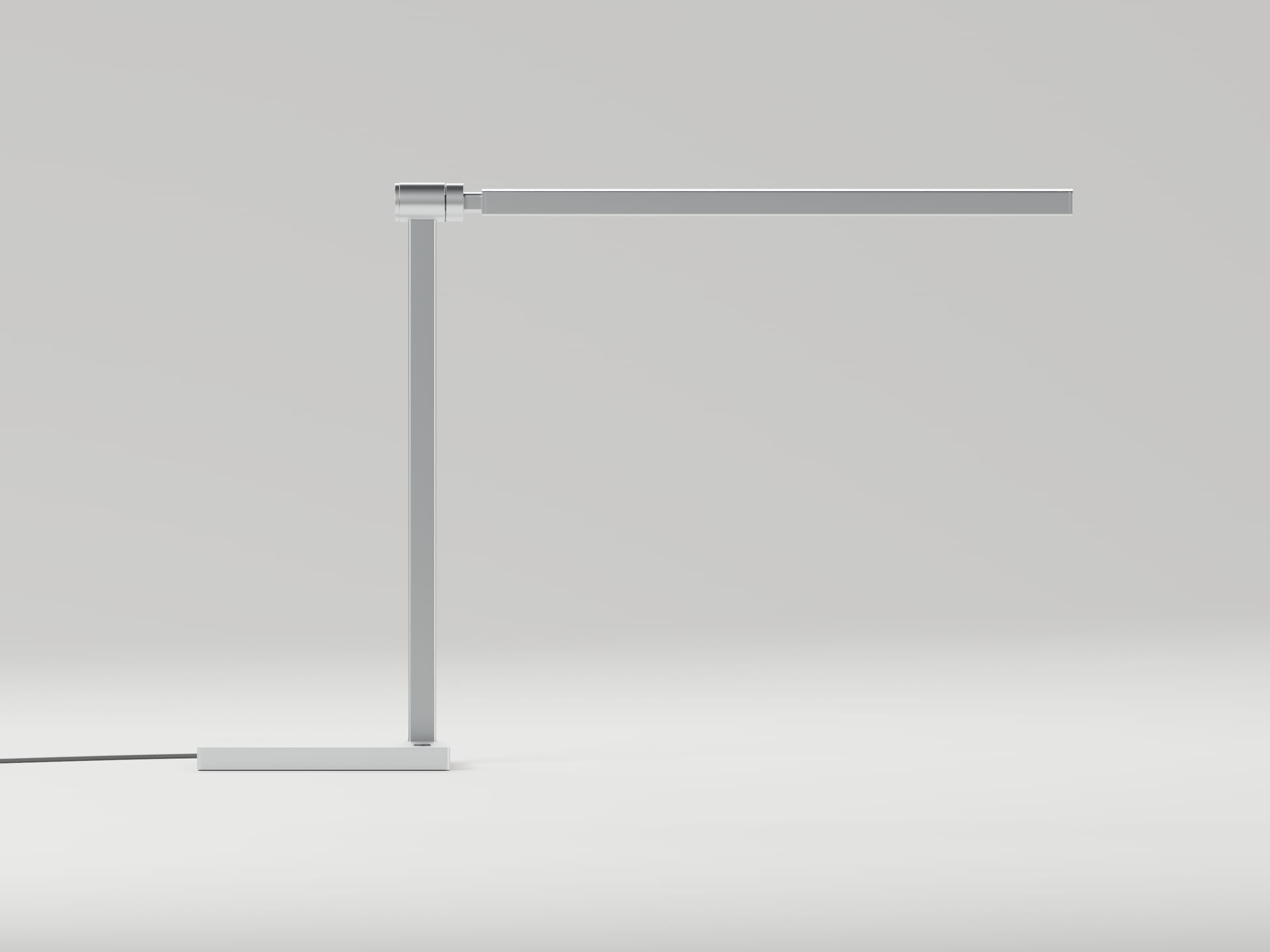

Front elevation of L01: a vertical support and a long horizontal head meeting at a cylindrical hinge, on a thin rectangular base.
01.1/Front elevation
Principal dimensions of L01
Envelope, L × W × H622.5 × 135.1 × 412.4 mm
Hinge axis height398.4 mm
Head length420 mm overall, 415 mm extrusion
Support length380 mm, centre line
Base width180 mm
Mass, CAD estimate2,186 g
Centre of gravity37, 9, 73 mm
Bill of materials34 items

02/Hinge

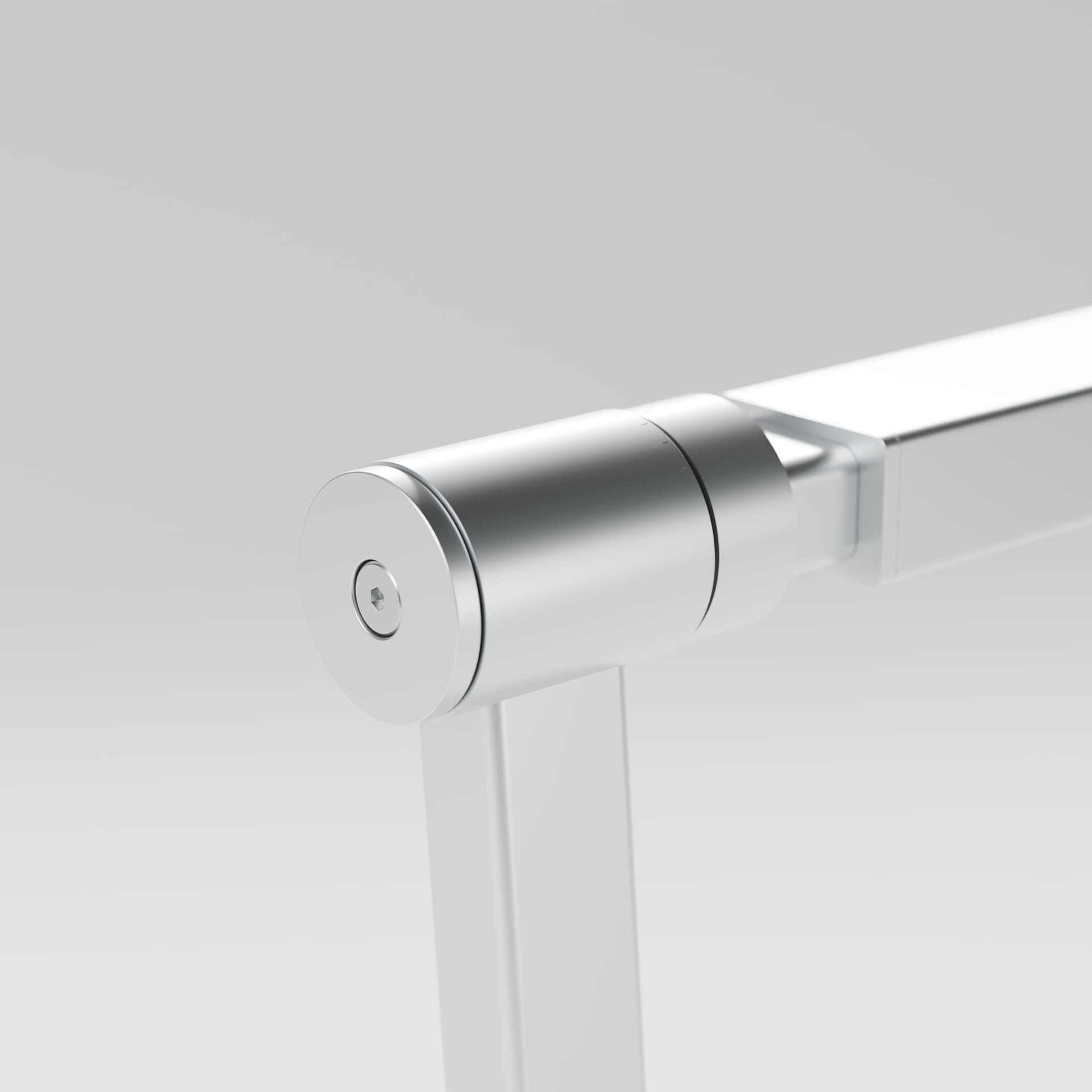

Close view of the hinge: a machined aluminum cylinder with a recessed hex-socket cap screw, joining the vertical support to the horizontal head.
02/Friction hinge

No bearing. No clutch.

The head rolls on a D22 journal, held by a stack of friction washers under a disc spring. Tightening one cap sets the torque. The calculated holding torque is about 80 times the gravity torque at full roll, so the head stays where it is put.

Friction hinge specification
ParameterValueNote
Roll range±60°Hard stops: a keyed stop-washer lug in a sector pocket in the hub, checked in CAD
Journal fitD22 H7 / g60.007 to 0.041 mm running clearance
ShaftD8, stainless 1.4305Fixed, double-D. It carries the preload; it is not a bearing
Friction facesPOM-C washersSeated in a 0.6 mm recess, leaving a 0.4 mm gap
Preload154 NDisc spring, set by an M6 × 0.75 cap with a 2.5 mm hex
Holding torque0.28 to 0.57 N·mTarget 0.35, calculated for friction μ 0.10 to 0.20
Gravity roll torque4.4 mN·mAt ±60°, centre of gravity 2.0 mm below the axis
Journal finishHard anodise, 25 µmHousing and cap: clear anodise

Calculated values. Holding torque is to be verified on prototypes.


03/Light

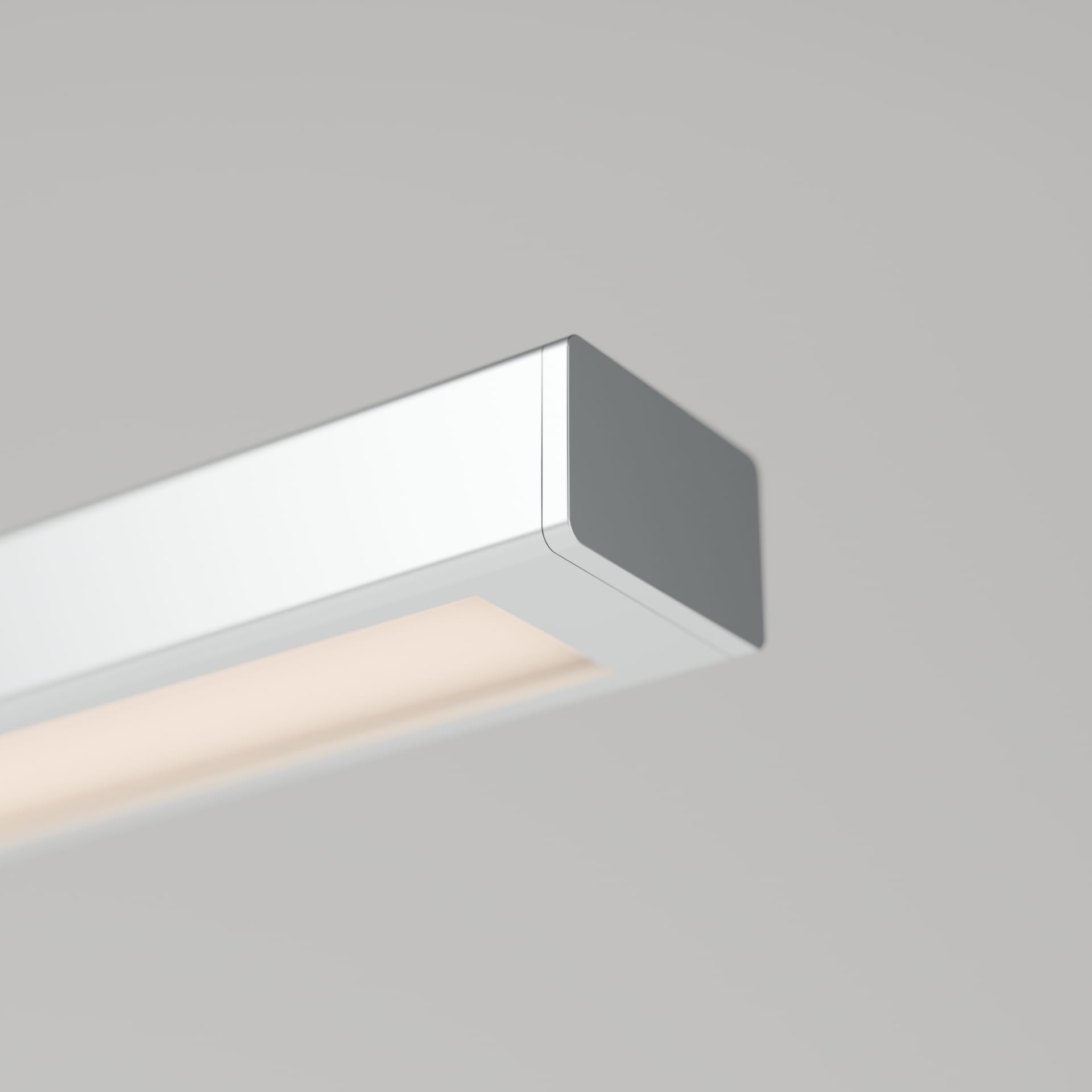

Close view of the free end of the light head: a square aluminum end cap and a recessed opal diffuser glowing warm white along the underside.
03/Opal diffuser, free end

A line, not a bulb.

The LED module sits recessed in the extrusion behind an opal diffuser. The diffuser snaps in past 0.6 mm ribs and flexes out again, so it is removable without tools or adhesive. An 8 mm thermal spine carries heat from the LED board into the housing walls.

Finish is part of
the heat sink.

At 8 W electrical, the calculated housing rise is 16.0 K with clear anodising and 25.0 K bare, about a third lower. The finish is a thermal decision as well as a visual one.

Calculated thermal budget of the light head
Electrical, WHeat, WRise, clear, KHousing, clear, °CRise, bare, KHousing, bare, °C
85.216.041.025.050.0
106.519.444.429.954.9
127.822.747.734.759.7

Clear = clear anodised, bare = bare satin aluminium. Housing temperature at 25 \u00B0C ambient. Hand calculation only: natural convection and radiation. No thermal test or simulation has been performed.


04/Base

Weight,
where it helps.

The base is the counterweight. A 10.5 mm steel plate, 1,174 g by CAD and more than half of the estimated 2,186 g, is laser-cut with through-features only and clamped under a steel cover with four countersunk screws. Silicone feet define the tipping lines. The support seats in a pocket machined at 5° and is retained by two M3 screws, reachable only with the cover off.

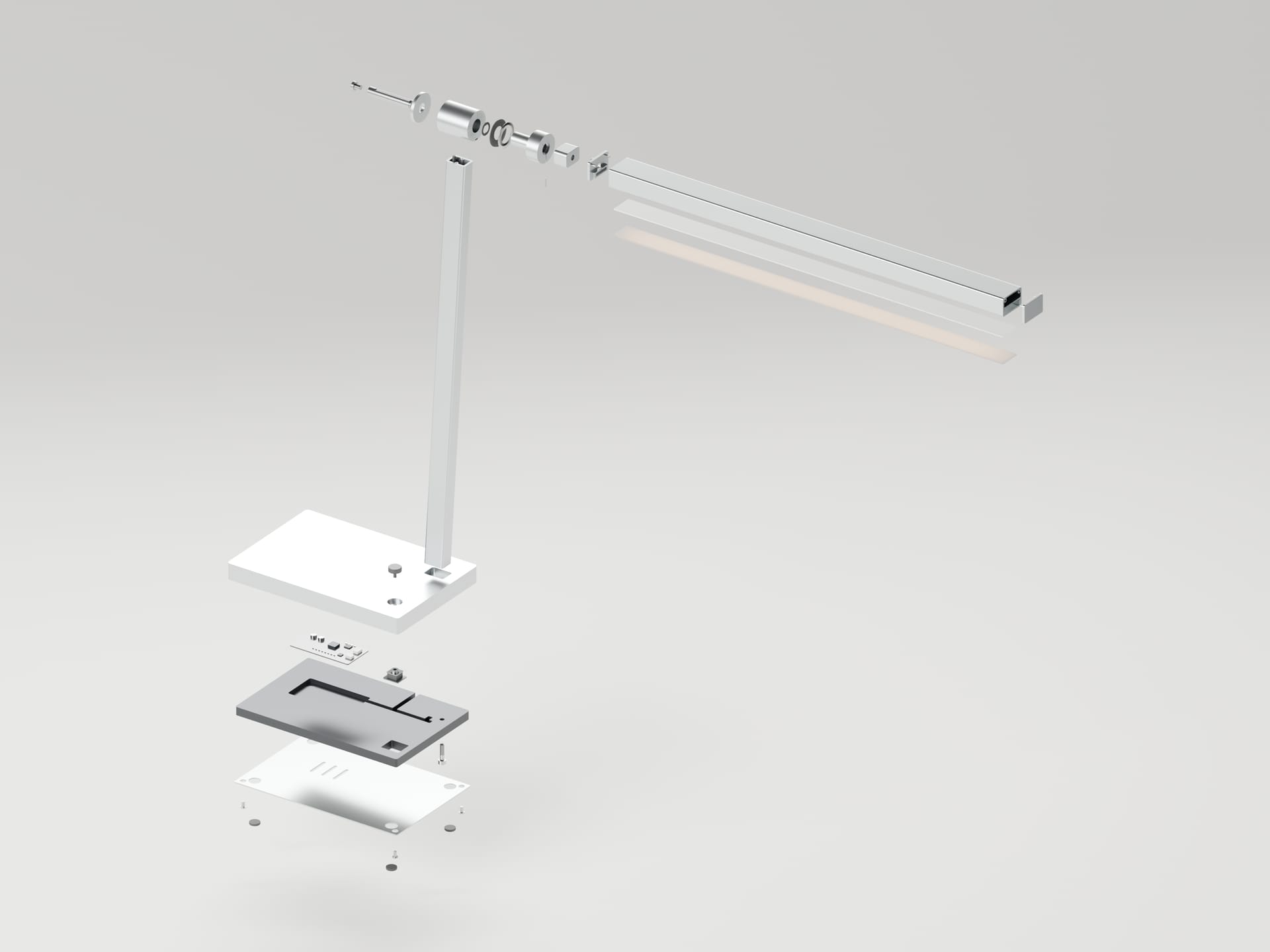

Exploded view of L01: the base plate, ballast, circuit board and cover below, the support, hinge components and head extrusion with diffuser above.
04.1/Exploded assembly34-item bill of materials

05/Documentation

From object
to specification.

Six A3 sheets in first-angle projection, toleranced to ISO 2768-mK: general assembly, base, support extrusion, friction hinge, light head, and an exploded assembly with its bill of materials. Three are shown here.

Rev B is an EVT-00 preliminary design. It has not been validated or released for manufacture. The driver and encoder are modelled as envelopes, and the thermal figures are hand calculations.

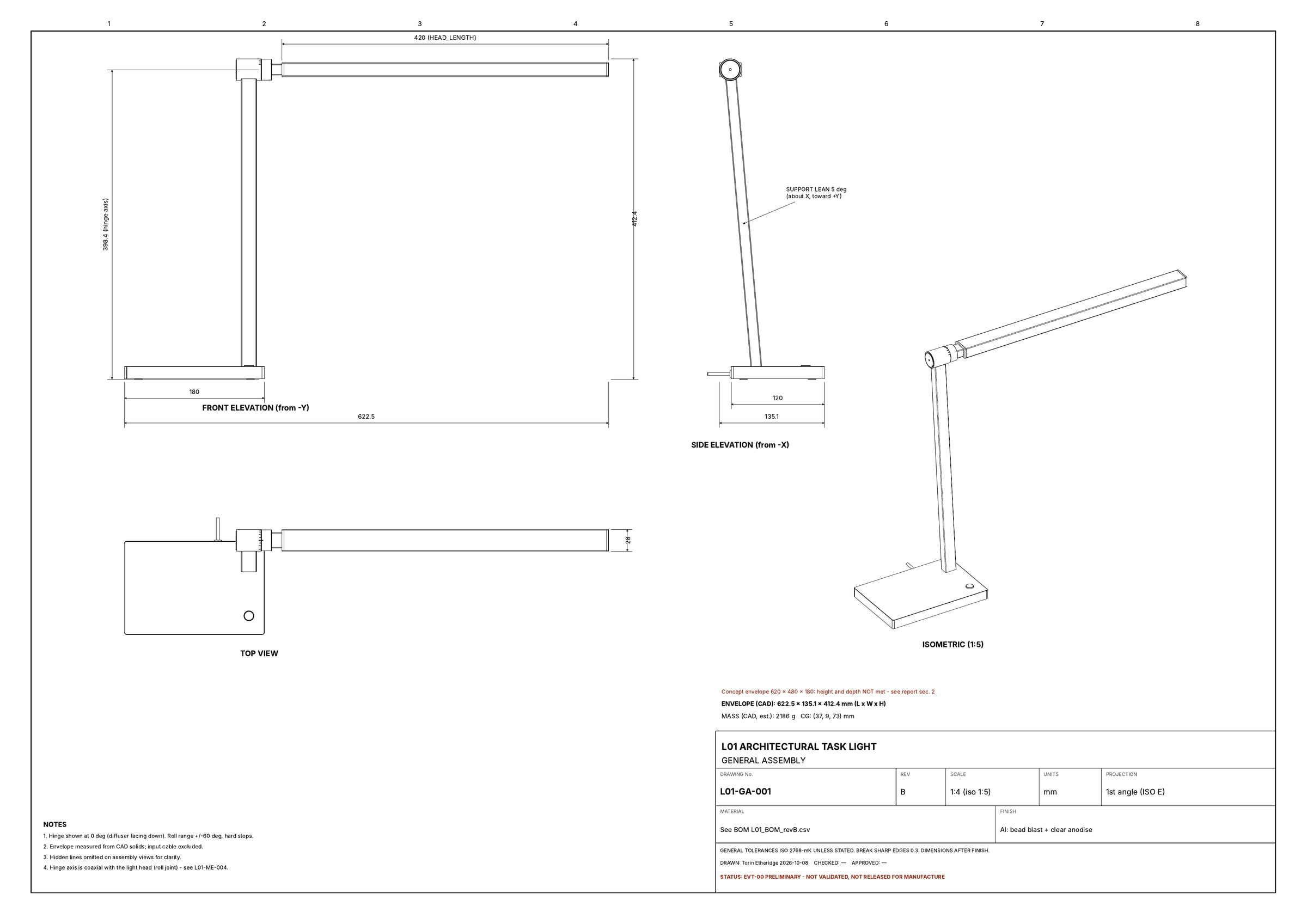

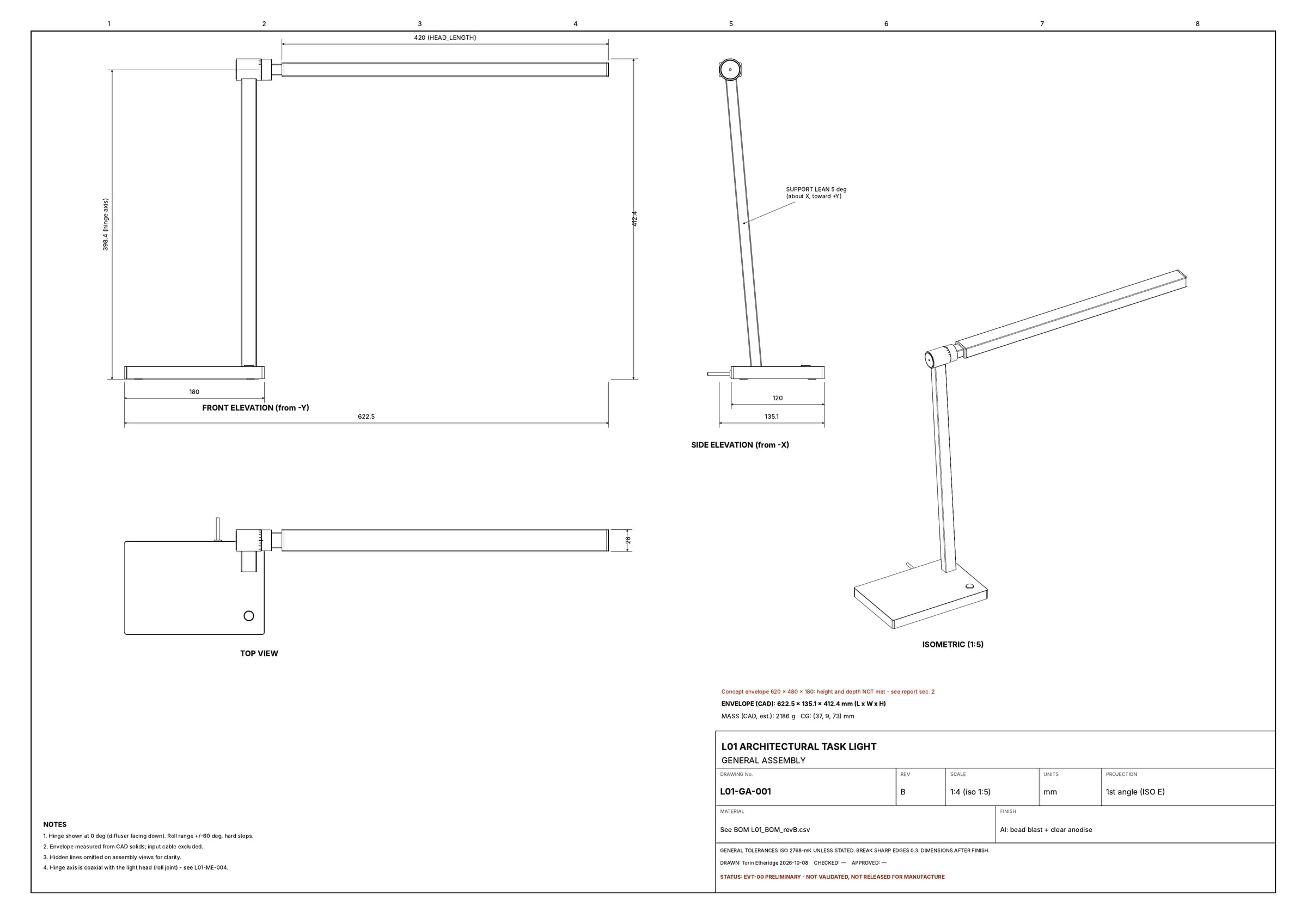

Technical drawing, sheet 1 of 6: general assembly with front and side elevations, top view, isometric view and overall dimensions.
05.1/L01-GA-001 / General assembly

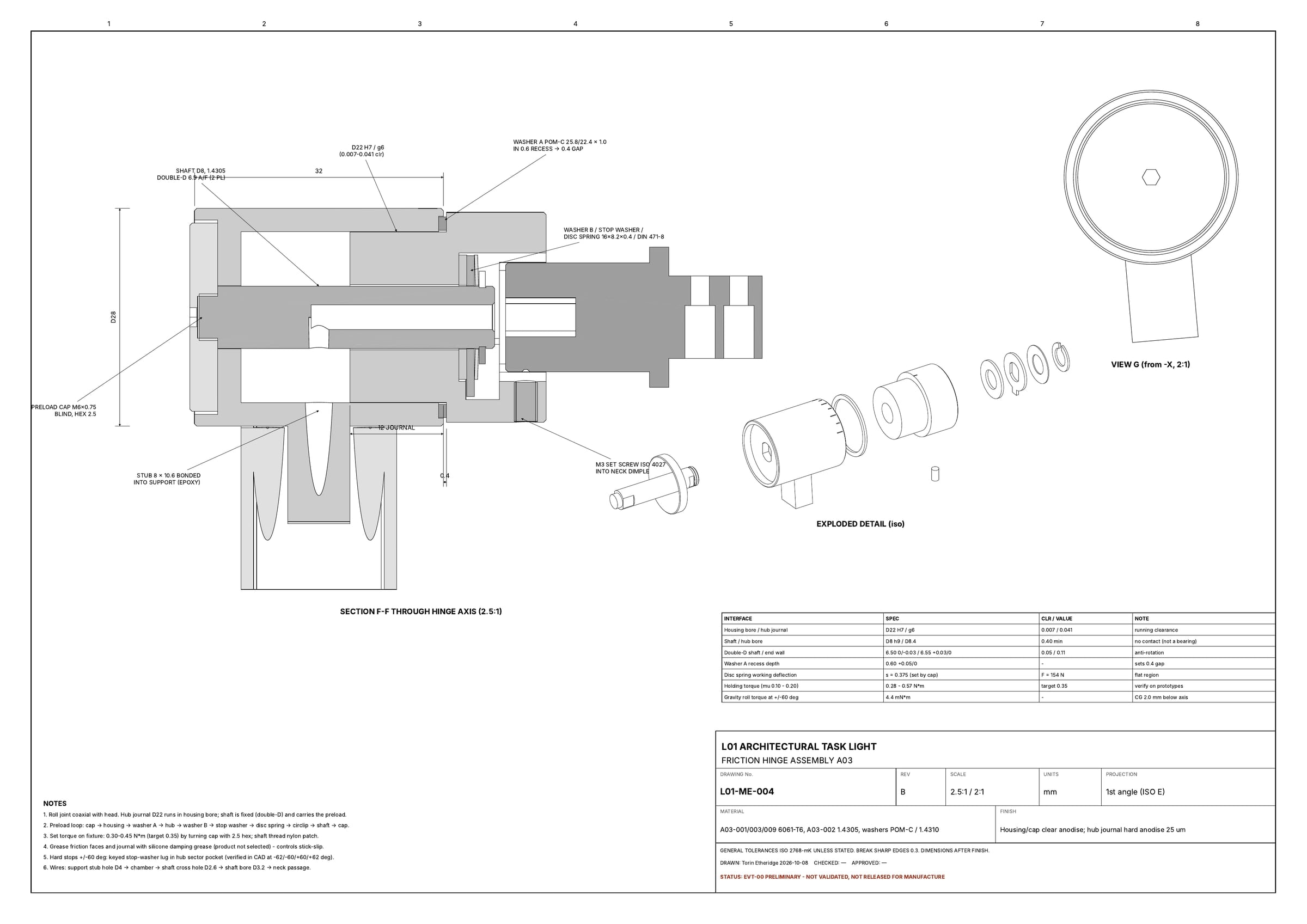

Technical drawing, sheet 4 of 6: the friction hinge in section with an exploded detail and a table of fits.
05.2/L01-ME-004 / Friction hinge

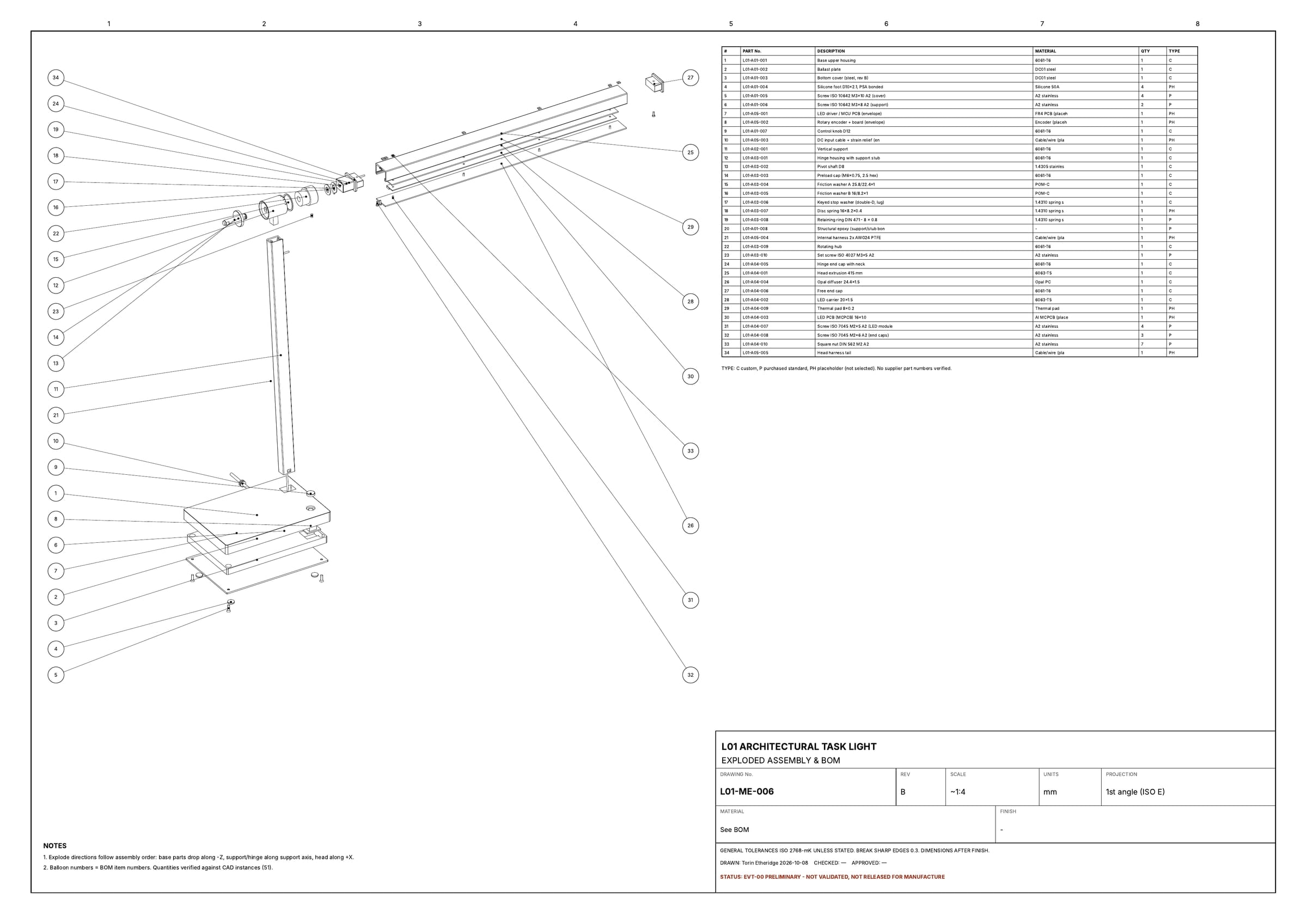

Technical drawing, sheet 6 of 6: the exploded assembly with numbered balloons and a bill of materials.
05.3/L01-ME-006 / Exploded and BOM

View drawing package 6 sheets / A3 / Rev B / PDF

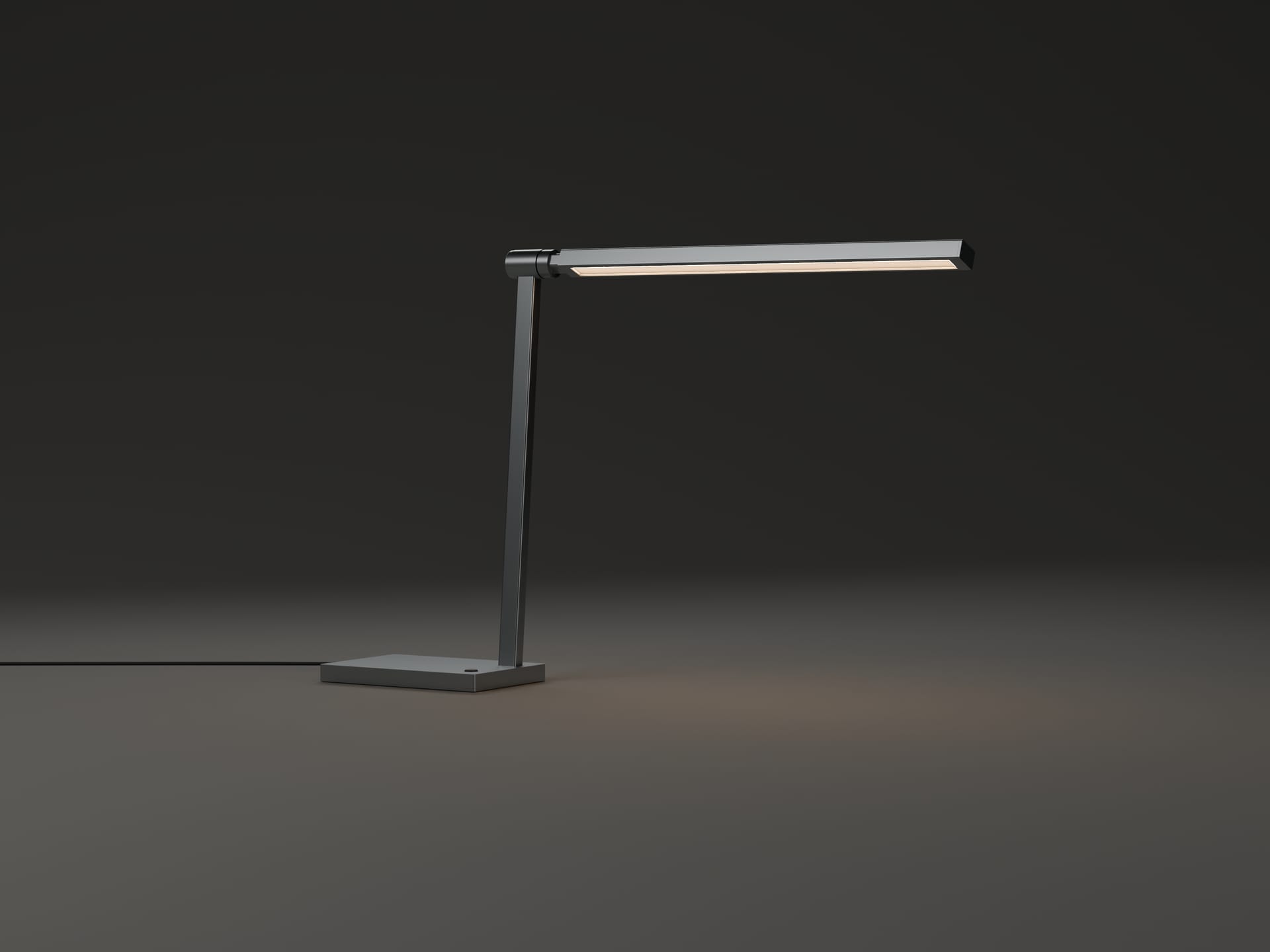

L01 in a dark room, switched on: the head glows warm white and a soft pool of light falls across the surface beside the base.
